Beyond Regular Matter: Antimatter vs Dark Matter

Antimatter and dark matter are two distinct concepts in physics, although both are related to understanding the universe’s fundamental components. Beyond the regular matter of the observable universe, antimatter and dark matter are doors to an unsolved mystery

What is Antimatter?

Antimatter is a form of matter that is composed of antiparticles, which are counterparts to the particles that make up normal matter (such as protons, neutrons, and electrons). Each antiparticle has the same mass as its corresponding particle, but the opposite charge.

For example,

Electron (e⁻) → Positron (e⁺)

(positively charged counterpart)

Proton (p⁺) → Antiproton (p⁻)

(negatively charged counterpart)

Neutron (n) → Antineutron (n̅)

(neutral, but with a different internal quark structure)

When matter and antimatter meet, they annihilate each other, converting their mass into energy in the form of gamma rays, following Einstein's equation E=mc^2.

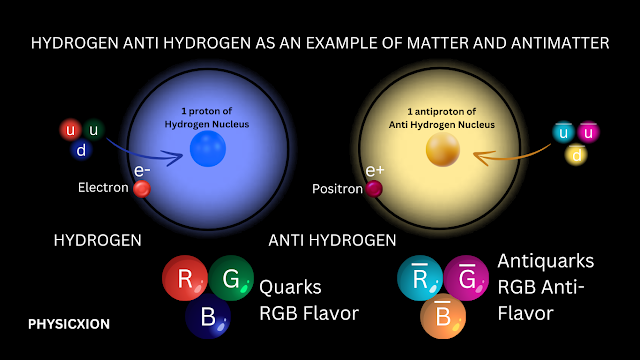

quark components of hydrogen and anti hydrogen as illustration

An example of an atom and its anti-atom is the hydrogen atom and its counterpart, the antihydrogen atom.

1. Hydrogen Atom:

The hydrogen atom is the simplest atom, consisting of:
- 1 proton in the nucleus, with a positive charge (+1).
- 1 electron orbiting the nucleus, with a negative charge (-1).

The atomic structure is maintained by the electromagnetic attraction between the oppositely charged proton and electron.

2. Antihydrogen Atom:

The antihydrogen atom is the antiparticle counterpart of the hydrogen atom, consisting of:
- 1 antiproton in the nucleus, with a negative charge (-1).
- 1 positron (the antimatter counterpart of the electron), with a positive charge (+1), orbiting the antiproton.

In the antihydrogen atom, the antiproton and positron are held together by the same electromagnetic force, but the charges are reversed compared to hydrogen.

Creation and Properties:

Hydrogen atoms are abundant in the universe and form the building blocks of stars, planets, and life.
Antihydrogen atoms are extremely rare and have been created in laboratories (such as CERN’s Antiproton Decelerator). When antihydrogen comes into contact with normal matter (hydrogen), it annihilates, releasing energy in the form of gamma rays.

This pair of hydrogen and antihydrogen illustrates how antimatter mirrors the properties of matter but with opposite charges.

The Discovery of Antimatter:

Antimatter was first predicted by British physicist Paul Dirac in 1928. He was working on equations that described the behavior of electrons in quantum mechanics, but his equations had solutions for particles with both positive and negative energy. This led to the prediction of antiparticles.

In 1932, the positron (the antimatter counterpart of the electron) was discovered by physicist Carl Anderson while observing cosmic rays in a cloud chamber.

Brief mathematical formulation of discovery ->

The Dirac equation is a relativistic wave equation for fermions (particles with spin-

1

/2

), such as electrons, that combines quantum mechanics and special relativity. In 1928, Paul Dirac proposed this equation to explain the behavior of electrons, and through its formulation, he predicted the existence of antimatter. Here, we will go through a simplified mathematical derivation of antimatter from the Dirac equation.

1. The Dirac Equation

The Dirac equation in natural units (

c

=

ℏ

=

1

) for a free particle of mass

m

is:

(i\gamma^\mu \partial_\mu - m)\psi = 0

Where:

$\gamma^\mu$ are the Dirac gamma matrices (which satisfy specific anticommutation relations related to the Clifford algebra),
$\psi$ is the Dirac spinor (a four-component wave function),
$\partial_\mu = \frac{\partial}{\partial x^\mu}$ is the four-gradient,
$m$ is the mass of the particle.

For simplicity, we can expand this as:

i\gamma^0 \frac{\partial \psi}{\partial t} + i \gamma^i \frac{\partial \psi}{\partial x^i} - m \psi = 0

Where

γ

0

and

γ

i

(with

i

=

1

,

2

,

3) are the gamma matrices, and

ψ

is the spinor field representing the particle.

2. Plane Wave Solution

Let’s assume a plane-wave solution for the spinor field ψ :

ψ (x, t) = u (p) e^{- i p \cdot x}

Where:

$u(p)$ is a constant spinor,
$p \cdot x = p_\mu x^\mu = E t - \vec{p} \cdot \vec{x}$ is the four-momentum inner product,
$E$ is the energy, and $\vec{p}$ is the three-momentum.

Substituting this into the Dirac equation:

(i γ^{μ} p_{μ} - m) u (p) = 0

Since

p

μ

=

(

E

,

p

⃗

), this becomes:

(\gamma^0 E - \gamma^i p_i - m) u(p) = 0

3. Squaring the Dirac Equation

To simplify, we can square the Dirac equation to recover the relativistic energy-momentum relation. First, multiply both sides of the equation by

(γ

μ

p

μ

+

m

)

(\gamma^\mu p_\mu + m)(\gamma^\nu p_\nu - m) u(p) = 0

Expanding this:

(γ^{μ} γ^{ν} p_{μ} p_{ν} - m^{2}) u (p) = 0

Using the property of the gamma matrices:

γ^{μ} γ^{ν} + γ^{ν} γ^{μ} = 2 g^{μ ν} I

where

g

μ

ν

is the metric tensor, we obtain:

p^\mu p_\mu - m^2 = 0

which is the familiar relativistic energy-momentum relation:

E^2 = \vec{p}^2 + m^2

4. Positive and Negative Energy Solutions

The equation

E^2 = \vec{p}^2 + m^2

admits two solutions:

E = \pm \sqrt{{\vec{p}}^{2} + m^{2}}

Thus, the Dirac equation naturally gives two solutions for the energy:

Positive energy: $E = +\sqrt{\vec{p}^2 + m^2}$
Negative energy: $E = -\sqrt{\vec{p}^2 + m^2}$

5. Interpreting Negative Energy States

At first, the negative energy solution was troubling because it seemed unphysical; in classical mechanics, negative energy does not make sense. However, Dirac proposed that these negative energy solutions correspond to a sea of particles (now known as the Dirac Sea), where all negative energy states are filled. The key points are:

Dirac Sea: If all negative energy states are filled, no more particles can occupy these states due to the Pauli exclusion principle.
Hole Theory: If a negative energy state is unoccupied (a "hole" in the sea), this hole behaves like a particle with positive energy and opposite charge. This was interpreted as an antiparticle.

For example:

A "hole" in the negative energy states of electrons would behave like a positron, the antiparticle of the electron, with the same mass as the electron but with a positive charge.

6. Antimatter from the Dirac Equation

The existence of negative energy solutions in the Dirac equation directly led to the prediction of antimatter:

The positron ( $e^+$ ) is the antiparticle of the electron, with the same mass but opposite charge.
Every particle described by the Dirac equation has a corresponding antiparticle with opposite charge but otherwise identical properties.

This is how antimatter was predicted mathematically from the Dirac equation. The equation describes both particles (positive energy solutions) and antiparticles (negative energy solutions reinterpreted as positive energy "holes" in the Dirac sea).

7. Experimental Confirmation

In 1932, Carl Anderson observed the positron (antielectron) in cosmic ray experiments, providing experimental confirmation of Dirac's prediction of antimatter. This discovery was a major milestone in physics and verified that negative energy solutions of the Dirac equation correspond to real physical antiparticles.

What is Dark Matter?

Dark matter is a mysterious and unseen form of matter that makes up about 26% of the universe. Unlike normal (baryonic) matter, dark matter does not interact with light or electromagnetic radiation, making it invisible to telescopes and other instruments that detect radiation. However, its presence is inferred from its gravitational effects on visible matter, radiation, and the large-scale structure of the universe.

Discovery and Evidence for Dark Matter

The concept of dark matter originated from observations in the 1930s, and it has become one of the most significant unsolved mysteries in cosmology. The key pieces of evidence that suggest the existence of dark matter include:

Galaxy Rotation Curves:

In the 1970s, astronomer Vera Rubin discovered that galaxies were rotating much faster than expected based on the amount of visible matter they contained. According to the laws of gravity, galaxies should have torn themselves apart at these high rotation speeds if they only contained visible matter. The fact that they remained intact led to the conclusion that there must be an additional, unseen form of matter—dark matter—exerting gravitational influence to hold the galaxies together.

Gravitational Lensing:

Gravitational lensing is the bending of light around massive objects due to gravity, as predicted by Einstein's theory of general relativity. In galaxy clusters, the amount of gravitational lensing observed is far greater than what would be expected from the visible matter alone, indicating the presence of dark matter. The additional mass provided by dark matter explains this strong gravitational effect.

Cosmic Microwave Background (CMB) Radiation:

The CMB, the afterglow of the Big Bang, contains subtle fluctuations that reveal information about the early universe’s structure. The patterns in the CMB indicate that the universe contains much more mass than what is visible, supporting the existence of dark matter. The CMB measurements from satellites like WMAP and Planck have provided strong evidence for dark matter's contribution to the universe's total mass-energy content.

Galaxy Cluster Mass:

Observations of galaxy clusters, such as the famous Bullet Cluster, reveal that the mass of these clusters far exceeds the mass of the visible matter. The separation of visible matter (like gas) and gravitational mass (traced by dark matter) in galaxy cluster collisions is another strong indicator of dark matter's existence.

Large-Scale Structure of the Universe:

Simulations of the formation and evolution of the large-scale structure of the universe—such as galaxies and galaxy clusters—require dark matter to explain how structures formed and grew over time. Without dark matter, these simulations do not match the universe's current structure.

Brief mathematical formulation of discovery ->

The mathematical discovery of dark matter came through indirect observations and calculations related to the dynamics of galaxies and the large-scale structure of the universe. Dark matter was introduced to account for discrepancies between the visible matter and the observed gravitational effects. These discrepancies were quantified through mathematical models involving Newtonian mechanics, general relativity, and cosmological observations.

1. Galaxy Rotation Curves (Vera Rubin's Observations)

One of the primary ways dark matter was inferred mathematically was through the study of galaxy rotation curves. A galaxy's rotation curve plots the rotational velocity of stars and gas at different distances from the galaxy's center.

1.1. Expected Rotation Based on Visible Mass

From Newtonian gravity, we can derive the expected rotational velocity for stars orbiting a galaxy. If a galaxy's mass is mostly concentrated in its central region (as inferred from visible matter), the velocity of stars at large distances from the center should follow Keplerian dynamics, where the velocity decreases with distance.

From Newton's law of gravitation, the centripetal force

F

acting on a star orbiting at a distance

r

from the galaxy's center is:

F = \frac{G M (r) m}{r^{2​}}

Where:

$G$ is the gravitational constant,
$M(r)$ is the mass enclosed within a radius $r$ ,
$m$ is the mass of the orbiting star,
$r$ is the radial distance from the center of the galaxy.

The centripetal force is also related to the orbital velocity

v

(

r

)

of the star:

F = \frac{m v (r)^{2}}{r​}

Equating the two expressions for the force:

\frac{GM(r)m}{r^2} = \frac{m v(r)^2}{r}

Solving for the velocity

v

(

r

)

v (r) = \sqrt{\frac{G M (r)}{r​}}

This formula suggests that if the mass $M(r)$ is primarily concentrated in the central part of the galaxy, the velocity $v(r)$ should decrease as $1/\sqrt{r}$ at large distances from the center (i.e., at large $r$ ).

1.2. Observed Rotation Curves

However, when astronomers like Vera Rubin measured the rotational velocities of stars at large distances from the centers of galaxies, they found that the velocity did not decrease with distance as expected. Instead, the velocity remained roughly constant:

v (r) \approx constant

This constant velocity implies that the mass

M

(

r

)

must continue to increase with distance

r

, even beyond the visible extent of the galaxy. This was puzzling because the visible matter (stars, gas, and dust) did not account for the increasing mass required by the rotation curves.

1.3. Dark Matter Halo

To reconcile this, astronomers hypothesized that galaxies are embedded in a massive, invisible halo of dark matter that extends well beyond the visible components of the galaxy. Mathematically, this means that the mass

M

(

r

)

grows as:

M (r) \propto r (for large r)

which is consistent with a roughly constant velocity at large distances. This additional unseen mass was termed dark matter.

2. Gravitational Lensing

Another crucial mathematical observation leading to the inference of dark matter comes from gravitational lensing.

2.1. General Relativity and Gravitational Lensing

According to Einstein's general theory of relativity, massive objects curve spacetime, causing light to bend as it passes near these objects. This bending of light is known as gravitational lensing. The amount of bending (deflection angle)

α

of light due to a mass

M

at a distance

r

from the light's path is given by:

\alpha \propto \frac{GM}{r}

Astronomers use this formula to measure the mass of galaxy clusters by observing how much they distort the light from background galaxies.

2.2. Evidence for Dark Matter from Gravitational Lensing

When the mass of galaxy clusters is calculated from gravitational lensing, it consistently turns out to be much larger than what can be accounted for by visible matter alone. For instance, the Bullet Cluster is a famous example where the visible matter (in the form of hot gas, stars, etc.) does not account for the observed lensing effects. This suggests that most of the mass in galaxy clusters is in the form of invisible dark matter.

3. Cosmic Microwave Background (CMB) and Dark Matter

The study of the cosmic microwave background (CMB) radiation, which is the afterglow of the Big Bang, has also provided mathematical evidence for dark matter.

3.1. CMB Fluctuations

The CMB contains small temperature fluctuations (anisotropies) that correspond to regions of different densities in the early universe. The power spectrum of these fluctuations can be analyzed to infer the matter content of the universe.

3.2. Cosmological Models

The ΛCDM model (Lambda Cold Dark Matter model) is the standard model of cosmology. It describes the universe as consisting of:

Normal matter (baryons),
Dark matter,
Dark energy (represented by Λ, the cosmological constant).

The mathematical analysis of the CMB power spectrum reveals that only about 5% of the universe is made of normal, baryonic matter. Roughly 26% of the universe consists of dark matter, while the remaining 69% is dark energy.

The calculations use equations from cosmology, such as the Friedmann equations, to model the evolution of the universe. These equations are:

{(\frac{\dot{a}}{a})}^{2} = \frac{8 π G}{3} ρ - \frac{k}{a^{2}} + \frac{Λ}{3​}

Where:

$a(t)$ is the scale factor,
$\rho$ is the total energy density of the universe (including dark matter, dark energy, and normal matter),
$k$ is the curvature of space.

The analysis of the CMB and other cosmological data shows that dark matter is essential to explain the observed structure and evolution of the universe.

The ΛCDM model showing pie chart of abundance of dark matter dark energy and regular matter in universe just as illustrative purpose

4. Large-Scale Structure Formation

The formation of galaxies and the large-scale structure of the universe also provide evidence for dark matter.

4.1. Structure Formation and Dark Matter

In the early universe, small density perturbations (seen in the CMB) grew over time due to gravitational attraction. However, baryonic matter alone is not sufficient to explain the growth of these structures on cosmic scales. Dark matter, which does not interact with light, provides the gravitational pull necessary to explain how galaxies and galaxy clusters formed.

The Jeans instability criterion describes the collapse of matter under gravity. The presence of dark matter alters this by allowing structures to form earlier and on larger scales than would be possible with only baryonic matter.

Properties of Dark Matter

Does Not Interact with Electromagnetic Forces:

Dark matter does not emit, absorb, or reflect light or any other form of electromagnetic radiation. This makes it "dark" and invisible to all current detection methods that rely on light (such as telescopes).

Interacts Only Gravitationally:

The only force that dark matter seems to interact with is gravity. This is why we can infer its presence by observing its gravitational effects on galaxies, galaxy clusters, and cosmic background radiation.

Cold and Slow-Moving:

Dark matter is thought to be cold (meaning it moves relatively slowly compared to the speed of light) and non-relativistic, which allows it to clump together and form large structures like galaxies and galaxy clusters.

Non-Baryonic:

Unlike normal matter, which is made of protons, neutrons, and electrons (baryons), dark matter is believed to be non-baryonic, meaning it consists of particles that are different from the particles that make up atoms. Its exact composition remains unknown.

Candidates for Dark Matter

Dark matter has not been directly detected yet, and its composition remains one of the biggest mysteries in modern physics. Several hypothetical particles have been proposed as candidates for dark matter:

Weakly Interacting Massive Particles (WIMPs):

WIMPs are one of the most favored candidates for dark matter. They are hypothetical particles that interact through the weak nuclear force and gravity, making them difficult to detect but capable of explaining the gravitational effects attributed to dark matter.

Several experiments, such as the Large Underground Xenon (LUX) experiment and XENON1T, are trying to directly detect WIMPs by observing rare interactions between these particles and normal matter.

Axions:

Axions are another proposed type of dark matter particle. They are extremely light and weakly interacting particles that could explain dark matter’s non-baryonic and cold nature.

Experiments like ADMX are focused on detecting axions.

Sterile Neutrinos:

Sterile neutrinos are a type of neutrino that does not interact via the weak nuclear force (unlike the three known types of neutrinos). They could contribute to dark matter if they exist and have mass.

MACHOs (Massive Compact Halo Objects):

MACHOs are massive objects like black holes, neutron stars, or brown dwarfs that don’t emit significant light. These could account for some dark matter, but observations suggest they can’t explain all the dark matter present in the universe.

Primordial Black Holes:

Primordial black holes are hypothetical black holes that formed shortly after the Big Bang. These could also be candidates for dark matter, though recent evidence has limited their contribution to a small fraction of the total dark matter.

Dark Matter vs. Dark Energy

It’s important not to confuse dark matter with dark energy. While both are mysterious components of the universe, they serve very different purposes:

Dark Matter: Provides gravitational pull and explains the structure and dynamics of galaxies and galaxy clusters. It acts like an "invisible glue" holding galaxies together.

Dark Energy: Dark energy, on the other hand, is a form of energy that is thought to be responsible for the accelerated expansion of the universe. It makes up about 69% of the universe and works in opposition to gravity.

How Dark Matter is studied

Direct Detection:

Experiments like XENON1T, LUX-ZEPLIN, and SuperCDMS aim to detect dark matter particles by observing their interactions with normal matter in sensitive detectors, typically placed deep underground to shield them from cosmic rays and other interference.

Indirect Detection:

Indirect detection experiments look for the products of dark matter annihilations or decays, such as high-energy photons (gamma rays) or other particles. Experiments like the Fermi Gamma-ray Space Telescope and AMS-02 (Alpha Magnetic Spectrometer) on the International Space Station search for signals of these processes.

Collider Experiments:

Experiments like those at the Large Hadron Collider (LHC) attempt to produce dark matter particles by smashing protons together at extremely high energies. If dark matter particles are created, they would escape the detector unnoticed, but scientists could infer their existence from missing energy and momentum in the collisions.

Astronomical Observations:

Astronomers study galaxy rotation curves, galaxy cluster dynamics, gravitational lensing, and the cosmic microwave background to learn more about the distribution and behavior of dark matter in the universe.

Antimatter vs Dark Matter:

Subject	Antimatter	Dark matter
Nature and Definition	Antimatter consists of particles that are the counterparts to the particles of ordinary matter but with opposite charges. For example, the antimatter equivalent of an electron is a positron, which has the same mass as an electron but a positive charge instead of a negative one.	Dark matter is a hypothetical form of matter that doesn’t interact with electromagnetic forces, meaning it does not emit, absorb, or reflect light, making it invisible and detectable only through its gravitational effects on visible matter, radiation, and the the large-scale structure of the universe
How They Interact	Antimatter interacts with normal matter through the electromagnetic and strong nuclear forces. When antimatter and matter collide, they annihilate each other in a burst of energy, following Einstein’s famous equation E=mc^2. This produces high-energy gamma rays.	Dark matter doesn’t interact with normal matter in any way other than gravitationally. It does not participate in any electromagnetic or nuclear interactions, making it very difficult to detect directly.
Evidence and Detection	Antimatter has been produced and observed in particle accelerators, and it naturally occurs in certain radioactive decays and cosmic rays. It’s well-understood theoretically and experimentally.	Dark matter’s existence is inferred from its gravitational effects on galaxies and galaxy clusters, like the rotation speeds of galaxies and the bending of light (gravitational lensing) around massive objects. However, dark matter has not been directly detected yet.
Abundance	Antimatter is extremely rare in the observable universe compared to normal matter. There’s a mystery in cosmology known as baryon asymmetry, which asks why the universe seems to be made almost entirely of matter, with very little antimatter.	Dark matter is believed to make up about 85% of the total matter in the universe, vastly outweighing ordinary (baryonic) matter. Yet, its composition remains unknown.
Role in the Universe	Antimatter plays a role in particle physics and is relevant in theories of the early universe, particularly in processes like baryogenesis (which might explain the matter-antimatter asymmetry).	Dark matter is crucial in cosmology and astrophysics for explaining the formation and structure of galaxies. Without dark matter, the gravitational pull needed to hold galaxies together would be insufficient.

How Antimatter is different from Dark Matter?

Antimatter is the "mirror" of matter with opposite charges and annihilates with matter, releasing energy.
Dark matter is an invisible form of matter detectable only via gravity, responsible for the structure and behavior of galaxies but not interacting with light or other forces.

These two concepts are part of the larger puzzle of understanding the universe, but they refer to very different phenomena.

Challenges and Ongoing Research

Antimatter:

Scientists are continuing to study antimatter to better understand its properties and potential uses. Some current areas of research include,

Antihydrogen Experiments: At CERN, experiments are ongoing with antihydrogen (a positron orbiting an antiproton). Researchers are trying to see if antimatter behaves the same as matter under gravity (a test of the equivalence principle in general relativity).

Matter-Antimatter Asymmetry: Physicists are investigating possible violations of symmetries between matter and antimatter (such as CP violation) to explain the universe's matter dominance.

Dark Matter:

No Direct Detection: Despite numerous efforts, dark matter has not yet been directly detected. This leaves open the question of whether our understanding of dark matter needs to be revised or if we are simply using the wrong methods to detect it.

Alternative Theories: Some scientists propose alternative theories to explain the phenomena attributed to dark matter. One example is Modified Newtonian Dynamics (MOND), which suggests that the laws of gravity might be different on cosmic scales, reducing the need for dark matter. However, dark matter is still the most widely accepted explanation.

Conclusion:

While antimatter and dark matter are both exotic forms of matter, they are fundamentally different in terms of their properties, behavior, and roles in the universe. antimatter is a known counterpart of normal matter, with mirrored properties, while dark matter remains hypothetical, detected only through its gravitational influence, and is critical to our understanding of cosmic evolution.

Beyond Regular Matter: Antimatter vs Dark Matter

Beyond Regular Matter: Antimatter vs Dark Matter

What is Antimatter?

1. Hydrogen Atom:

2. Antihydrogen Atom:

Creation and Properties:

The Discovery of Antimatter:

Brief mathematical formulation of discovery ->

1. The Dirac Equation

2. Plane Wave Solution

3. Squaring the Dirac Equation

4. Positive and Negative Energy Solutions

5. Interpreting Negative Energy States

6. Antimatter from the Dirac Equation

7. Experimental Confirmation

What is Dark Matter?

Discovery and Evidence for Dark Matter

Brief mathematical formulation of discovery ->

1. Galaxy Rotation Curves (Vera Rubin's Observations)

1.1. Expected Rotation Based on Visible Mass

1.2. Observed Rotation Curves

1.3. Dark Matter Halo

2. Gravitational Lensing

2.1. General Relativity and Gravitational Lensing

2.2. Evidence for Dark Matter from Gravitational Lensing

3. Cosmic Microwave Background (CMB) and Dark Matter

3.1. CMB Fluctuations

3.2. Cosmological Models

4. Large-Scale Structure Formation

4.1. Structure Formation and Dark Matter

Properties of Dark Matter

Candidates for Dark Matter

Dark Matter vs. Dark Energy

How Dark Matter is studied

Antimatter vs Dark Matter:

How Antimatter is different from Dark Matter?

Challenges and Ongoing Research

Conclusion:

Join the conversation
